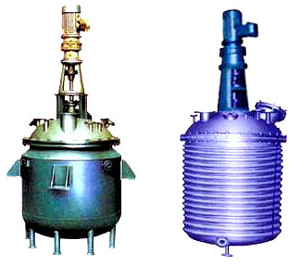

Stainless steel reaction kettle

Our stainless steel reaction kettles (heated by electric power, steam or heat transfer oil) consist of kettle cover, cylinder body, jacket, agitator, shaft seal transmission assembly and support. The kettle body and wetted parts in contact with process materials are made of OCr18Ni9 or 1Cr18Ni9Ti acid-resistant stainless steel plate.

We specialize in manufacturing stainless steel reaction kettles and undertake design & fabrication of non-standard equipment for chemical and light industries. Customers at home and abroad are welcome to make inquiries.
Available agitation types for our reaction kettles include conventional paddle agitator, turbine agitator, propeller agitator, anchor agitator, gate agitator, helical ribbon agitator, serrated disc agitator, etc.
We specially recommend high-shear emulsifying reaction kettles, the combined agitation reactor integrating gate agitator, high-shear emulsifier and wall wiper. It features integrated functions of dispersion, mixing, emulsification, homogenization and pulverization, with ultra-fine processing, high quality and high efficiency.

Electrically Heated Stainless Steel Reaction Kettle

Nominal Volume L	Electric Heating Power	Inner Vessel Diameter φmm	Jacket Diameter φmm	Reducer Model	Motor n/kw	Agitation Speed r.p.m
50	4×2 KW	φ400	φ600	BLD 0.8-1	1450/0.8	60-100
100	6×2 KW	φ500	φ700	BLD 1.1-1	1450/1.1	60-100
300	6×4 KW	φ800	φ1000	BLD 2.2-2	1450/2.2	60-100
500	9×4 KW	φ900	φ1100	BLD 3-2	1450/3	60-100
1000	12×4 KW	φ1200	φ1400	BLD 4-3	1450/4	60-100
2000	15×5 KW	φ1400	φ1600	BLD 4-3	1450/4	60-100
3000	15×6 KW	φ1600	φ1800	BLD 5.5-3	1450/5.5	60-100

Steam-Heated Stainless Steel Reaction Kettle

Spec. L	Inner Vessel Diameter φmm	Jacket Diameter φmm	Motor Power kw	Reducer Model	Agitation Speed r.p.m
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	650	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59

Since production processes and operating conditions vary among users, jacket heating types include electric rod heating, steam heating and heat transfer oil circulation heating. Shaft seal options are packing seal and mechanical seal. Agitator types available: anchor, paddle, turbine, propeller or gate. Nozzle quantity, specifications and other requirements can be designed and manufactured as per customer demands.
