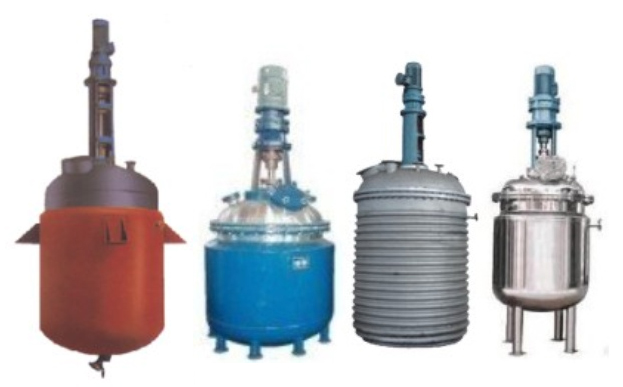

Steam heating and heat transfer oil heating reaction kettle
| Capacity (L) | Nominal Diameter (Φmm) | Jacket Nominal Diameter (Φmm) | Motor Power (KW) | Reducer Model | Stirring Speed (r.p.m) |
| 30 | 300 | 400 | 0.6 | BLD 0.6-1 | 60-100 |
| 50 | 400 | 500 | 0.8 | BLD 0.8-1 | 60-100 |
| 100 | 500 | 600 | 1.1 | BLD 1.1-1 | 60-100 |
| 150 | 600 | 700 | 2.2 | BLD 2.2-2 | 60-100 |
| 200 | 600 | 700 | 2.2 | BLD 2.2-2 | 60-100 |
| 300 | 700 | 800 | 3 | BLD 3-2 | 60-100 |
| 500 | 900 | 1000 | 3 | BLD 3-2 | 60-100 |
| 800 | 1100 | 1200 | 4 | BLD 4-2 | 60-100 |
| 1000 | 1200 | 1300 | 4 | BLD 4-3 | 60-100 |
| 1500 | 1200 | 1300 | 4 | BLD 4-3 | 60-100 |
| 2000 | 1300 | 1400 | 5.5 | BLD 5.5-3 | 60-100 |
| 2500 | 1400 | 1500 | 7.5 | BLD 7.5-4 | 60-100 |
| 3000 | 1500 | 1600 | 7.5 | BLD 7.5-4 | 60-100 |
| 3500 | 1500 | 1600 | 7.5 | BLD 7.5-4 | 60-100 |
| 4000 | 1600 | 1700 | 7.5 | BLD 7.5-4 | 60-100 |
| 5000 | 1800 | 1900 | 11 | BLD 11-4 | 60-100 |
| 6000 | 1900 | 2000 | 15 | BLD 15-5 | 60-100 |
| 10000 | 2200 | 2300 | 15 | BLD 15-5 | 60-100 |
| 18000 | 2700 | 2800 | 15 | BLD 15-5 | 60-100 |
| 32000 | 3200 | 3300 | 37 | BLD 37-56A | 35-59 |
| 80000 | 4000 | 4200 | 55 | BLD 55-56A | 35-59 |
Other special specifications can be custom designed.
