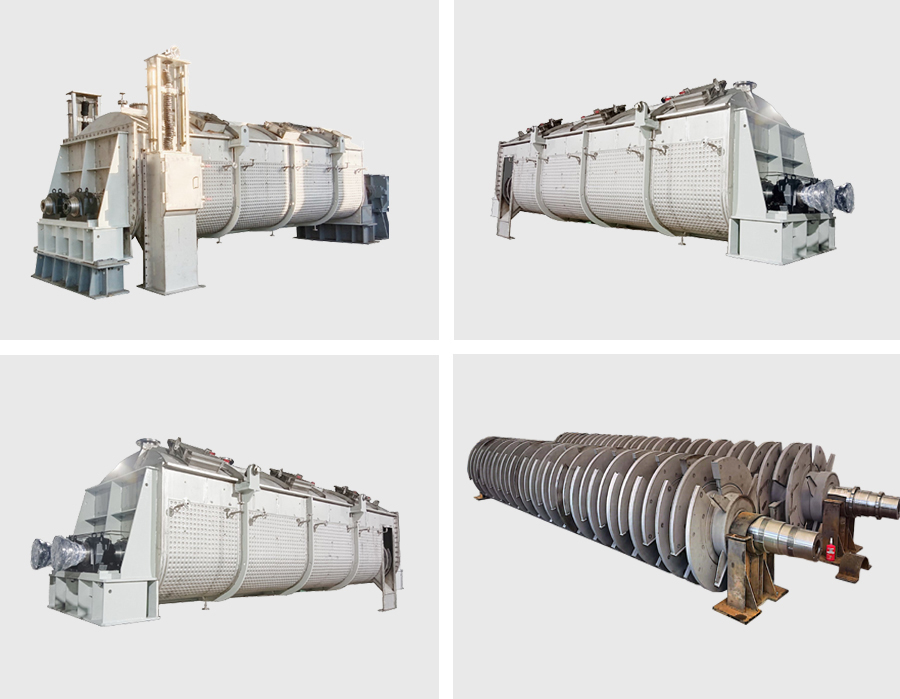

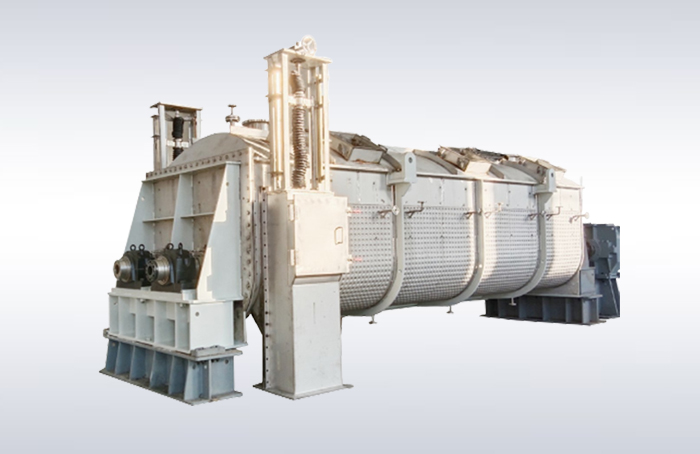

The JYD type paddle dryer is heated on both shell and internal rotor, which greatly expands drying area, improves thermal efficiency and ensures thorough material drying. The machine consists of two or more intermeshed rotors installed inside a jacketed shell. Multiple fan-shaped hollow heating paddles are fitted on each rotor. Heating medium enters hollow rotating shafts and paddles through rotary joints mounted at shaft ends. After heat transfer and drying, condensate water is discharged out of the machine via rotary joints. The equipment features as follows:
— Low energy consumption: Adopting indirect heating, little heat is carried away by large amount of conveying air. The outer wall of dryer is equipped with jacket and thermal insulation layer. For slurry materials, only 1.1~1.3 kg saturated steam is required to evaporate 1 kg water.
— Low system investment: Multi intermeshed shafts provide large heat transfer area with compact equipment dimension.
— Wide range of processable materials: With different heating media, it can dry both heat-sensitive materials and materials requiring high-temperature treatment. Common media include saturated steam, thermal oil, hot water, etc. It supports continuous or batch operation and can be applied in many fields.
— Low operating cost: Simple structure with very low maintenance cost.
— The equipment features simple structure, few wearing parts and stable operation.
