Coil Dryer ◎ Category: Drying Equipment Series ◎ Application Industries: Widely used in animal protein, plant protein, food, harmless treatment and other fields ◎ Equipment Features: High efficiency, long service life, low maintenance frequency

◎ Product Introduction

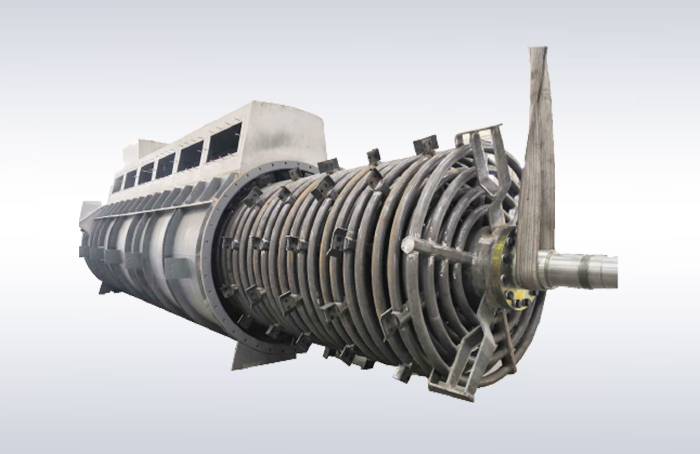

The PGD type coil dryer features heating on both the outer shell and internal rotor, which greatly expands the drying area, improves thermal efficiency and ensures thorough material drying. The dryer consists of a horizontal shell and a rotor equipped with multiple heating coils. Adjustable-angle pushers are mounted on the heating coils, which heat materials while conveying them toward the discharge end during operation. The steam distribution device inside the rotating shaft distributes steam evenly to every heating coil to maintain constant temperature. Condensate is discharged via a special shaft-end assembly.
This equipment delivers high drying efficiency, long service life and low maintenance frequency. It is widely applied in animal protein, plant protein, food, harmless treatment and other industries. Depending on material properties, available materials include carbon steel, 304 stainless steel, 316L stainless steel, duplex steel, etc.

◎ Technical Parameters

Model	PGD-50	PGD-100	PGD-150	PGD-200	PGD-250
Capacity(t/d)	13	25	40	50	65
Evaporation Capacity(kg/h)	500	1000	1500	2000	2500
Heating Area(㎡)	50	100	150	200	250
Steam Pressure(MPa)	≤1.0
Steam Temperature(℃)	≤185
Rotation Speed(r.p.m)	1-10
Motor Power(kW)	22	37	45	55	75

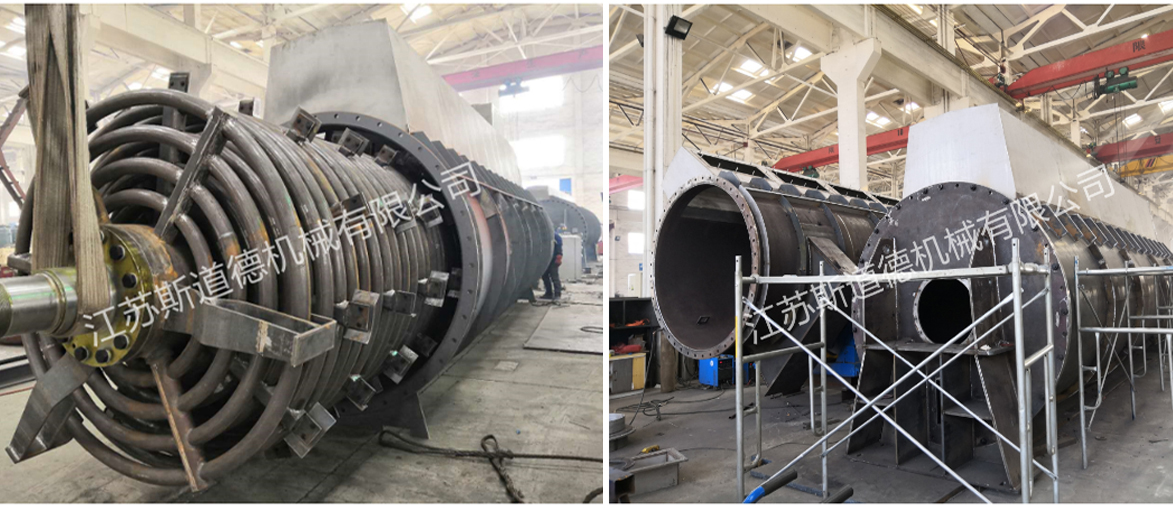

◎ On-site Photos
