MVR Evaporator ◎ Category: Evaporation & Concentration Equipment Series ◎ Application Industries: Oil & fat chemical, starch, fruit juice, environmental wastewater treatment ◎ Equipment Features: Improved efficiency, energy saving, stable operation

◎ Product Introduction
MVR evaporator compresses the secondary steam generated inside the evaporator via a compressor to raise its pressure, temperature and heat content. The compressed steam is fed into the heating chamber of the evaporator as heating steam to keep materials boiling. This method realizes rational reuse of vapor from evaporation process, boosting efficiency and cutting energy consumption. It mainly consists of heater, separator, vapor compressor, preheater, condenser, pumps, control system and operating platform. Normally, MVR evaporator achieves 20 to 30 times higher utilization efficiency compared with multi-effect evaporators. The system consumes only electricity instead of steam during normal operation. Energy consumption ranges from 15 kWh to 100 kWh per ton of evaporated water, featuring low operating cost. As an energy-saving evaporation and concentration equipment, MVR evaporator is mostly single-effect type and also available in multi-effect configuration. It has small heating temperature difference and short material residence time, suitable for highly heat-sensitive materials. Compact structure with small footprint. Adopting DCS control for automatic operation, it can run continuously and stably for long periods.
MVR evaporators are widely applied for evaporation and concentration in oil & fat chemical, starch, fruit juice, environmental wastewater treatment and other industries.

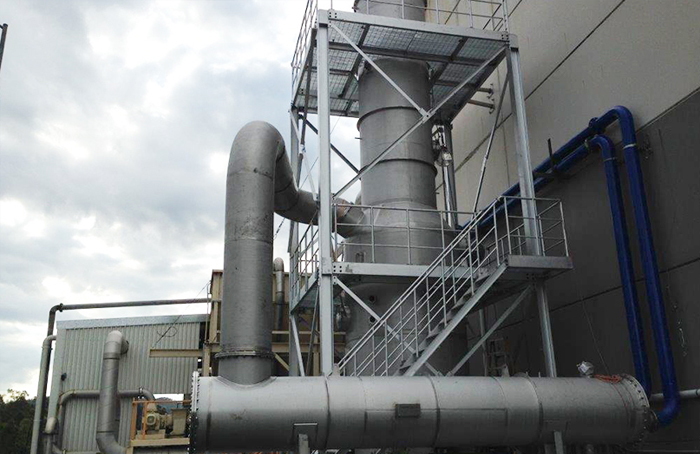

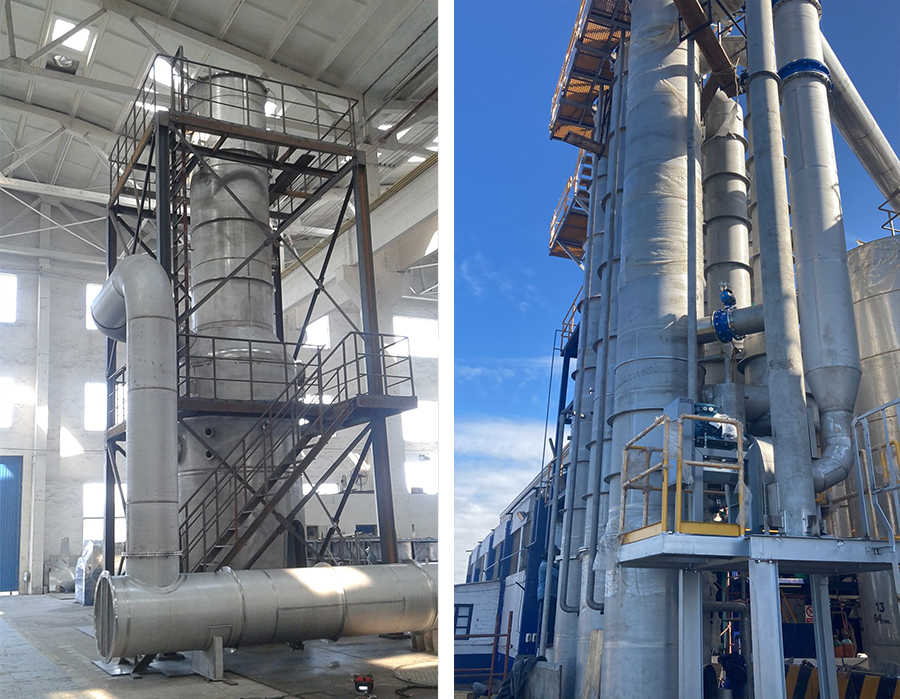

◎ On-site Photos
