Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

Batch Cooker ◎ Category: Cooking & Hydrolysis Equipment Series ◎ Application Industries: Production of meat meal, bone meal and feather meal ◎ Equipment Features: High feeding accuracy, corrosion resistance, long service life

◎ Product Introduction
PBC type batch cooker, also known as batch hydrolyzer or batch rendering machine, is mainly designed for animal waste raw materials such as slaughterhouse animal by-products recycling. It is widely used in the production of meat meal, bone meal and feather meal, as well as the disposal of sick and dead livestock and animal carcasses. It integrates high-temperature sterilization, rendering and drying to achieve ideal treatment results. The equipment is suitable for large and medium-sized slaughterhouses, farms and municipal harmless treatment projects. Together with crushers, dryers, oil presses, screw conveyors, waste gas treatment units and other equipment, it forms a complete waste treatment system. Its features are listed as below:
1.1 The outer shell adopts double-layer jacket. High-temperature steam is passed into both the jacket and internal rotor to enlarge heat exchange area and improve production efficiency.
1.2 Available materials include carbon steel, stainless steel, duplex steel and so on.
1.3 Integral steel frame support allows flexible relocation.
1.4 Automatic control for inlet and outlet ports for easy operation.
1.5 The feeding weight is controlled by bottom weighing sensors, delivering high feeding accuracy and stable product quality.
1.6 Wide operating pressure range; the designed pressure of heating components can be 0.05-2 MPa.
1.7 Stainless steel cladding for outer insulation enhances corrosion resistance, extends service life and provides nice appearance.
1.8 Automatic water delivery system recovers steam condensate to boiler, reducing energy consumption and saving water & heat resources.

◎ Technical Parameters

Model	Charging Volume (L)	Motor Power (kW)	Equipment Weight (t)	Overall Dimension (mm)
PBC-2000	1200	11	7	3800×1600×1500
PBC-3500	2200	22	12	5800×1600×1600
PBC-6000	3500	37	16	5800×1800×1600
PBC-8500	5500	55	25	8500×2000×1800
PBC-10000	6500	75	30	9000×2000×1800
PBC-12500	8000	90	35	10500×2000×1900
PBC-16000	9800	110	40	10500×2200×2000
PBC-18000	11000	132	45	10500×2300×2100

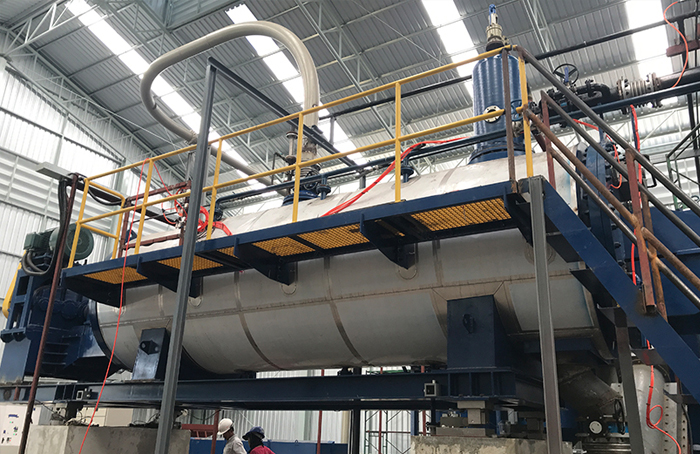

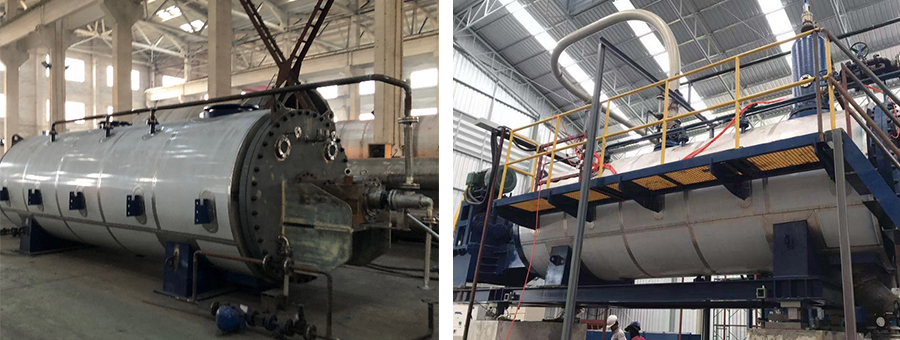

◎ On-site Photos
