Multifunctional extraction tank

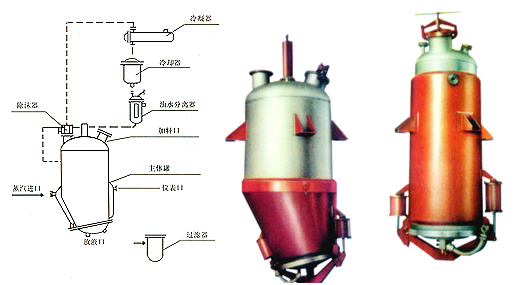

  【TQ Series Multifunctional Extraction Tank】
  This equipment can be used for various process operations in traditional Chinese medicine, food and chemical industries, including atmospheric extraction, water decoction, wet soaking, thermal reflux, forced circulation percolation, aromatic oil extraction and organic solvent recovery. It features high efficiency and convenient operation. The unit adopts high-quality materials, and is widely used for volatile oil extraction in pharmaceutical, food, chemical and other industries.
  Main Technical Parameters
  0.5 1.0 2.0 3.0 6.0
Total Volume (L) 500 1200 2500 1200 1200
Design Pressure in Tank (Mpa) 0.09
Design Pressure in Jacket (Mpa) 0.3
Allowable Vacuum Degree in Tank (Mpa) 60
Compressed Air Pressure (Mpa) 0.6-0.7
Diameter of Charging Door (mm) 300 300 400 300 300
Heating Area (m²) 2.4 3.1 4.2 3.1 3.1
Condensation Area (m²) 3 5 5 5 5
Cooling Area (m²) 1 1 1 1 1
Filtration Area (m²) 0.25 0.25 0.25 0.25 0.25
Equipment Weight (kg) 1000 1500 1800 1500 1500
Overall Dimension (mm) φ1400
×φ2300 		φ1700
×φ2900 		φ1800
×φ3700 		φ1700
×φ2900 		φ1700
×φ2900
Energy Consumption (kg/h) 200 245 325 245  
Shuoyun Petrochemical's production qualifications: Special Equipment Manufacturing License, Special Equipment Design License, Radiation Safety License...
