Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

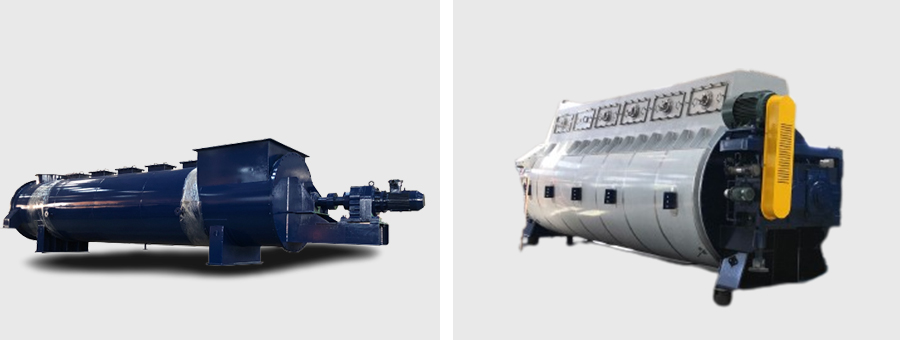

Powder Cooler ◎ Category: Cooling Equipment Series ◎ Application Industry: Powder Cooling ◎ Equipment Features: Remarkable cooling effect, low failure rate

◎ Product Introduction
The powder cooler, also known as cold powder machine, is mainly used for high-temperature cooling of animal and plant protein after drying. It prevents product quality degradation caused by excessive temperature and scalding accidents during material conveying. Working principle: powder materials enter from one end of the equipment while cold air enters from the other end. The internal rotor throws and disperses materials, so hot materials exchange heat with cold gas by convection to reduce powder temperature. The gas is discharged after dedusting by the upper dust collector. To improve cooling performance, a jacket can be installed outside the equipment cylinder with circulating cold water inside the jacket to further enhance cooling efficiency.

◎ Technical Parameters

Cylinder Size (mm)	Processing Capacity (kg/h)	Volume (L)	Power (kW)	Rotational Speed (r.p.m)
Φ1200×7000	1500	7900	11	24
Φ1400×7000	2500	10700	15	24
Φ1600×8000	3500	16000	18	24
Φ2000×8000	4000	24800	22	21
Φ2000×9000	5000	27000	30	21
Φ2000×12000	7000	37200	37	21
Φ3000×10000	10000	70000	45	17
Φ3000×12000	15000	85000	55	17

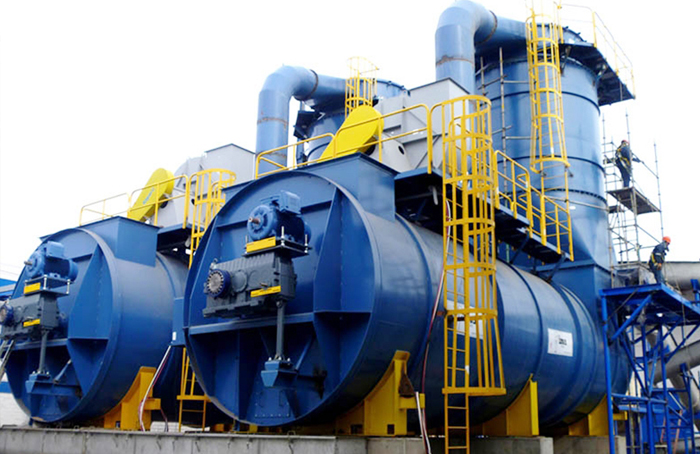

◎ On-site Photos
