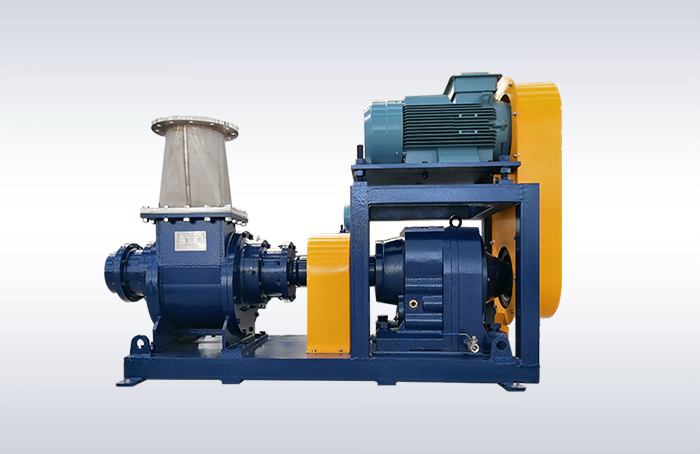

Wear-resistant Vane Pump ◎ Category: Conveying Equipment Series ◎ Application Industries: Pre-crushed animal by-products, fish and pet food, etc. ◎ Equipment Features: Low energy consumption, odor reduction, versatile to meet various requirements

◎ Product Introduction
The vane pump is mainly used to convey solid mixtures with large particles or high-viscosity liquid mixtures, such as pre-crushed animal by-products, fish and pet food.

◎ Advantages
1. The vane pump is well suited for feeding all types of cookers and other processing equipment in closed systems, thereby reducing odor emission.
2. Though classified as high-capacity pumps, they consume less energy compared with conventional conveying systems.

◎ Technical Description
1. The vane pump is available in carbon steel or stainless steel casings in various sizes to satisfy diverse application requirements.
2. Manufactured from special steel with replaceable wear parts. It has only four moving components and can be fitted with mechanical seal or packing seal.
3. Depending on material characteristics, the pump can be driven by motor reducer or hydraulic motor.

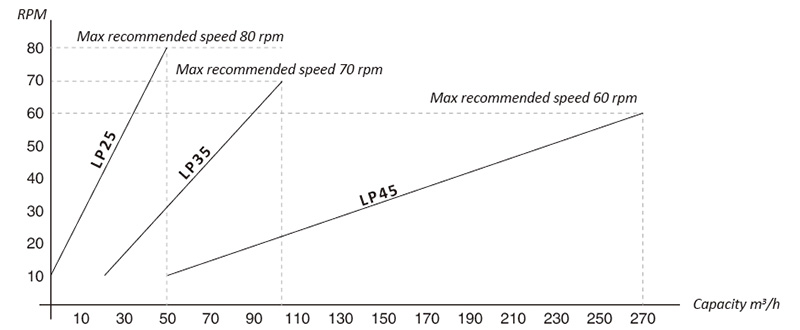

◎ Theoretical Values

◎ Technical Parameters

Model	LP25	LP35	LP45
Capacity (m³/h)	48	105	270
Max Speed (rpm)	80	70	60
Head (m)	10	25	75
Output Torque (Nm)	4000	7000	15000
Weight (kg)	390	550	915
Max Solid Size of Discharge (mm)	65	85	135
Connection Nozzle (mm)	150	250	350

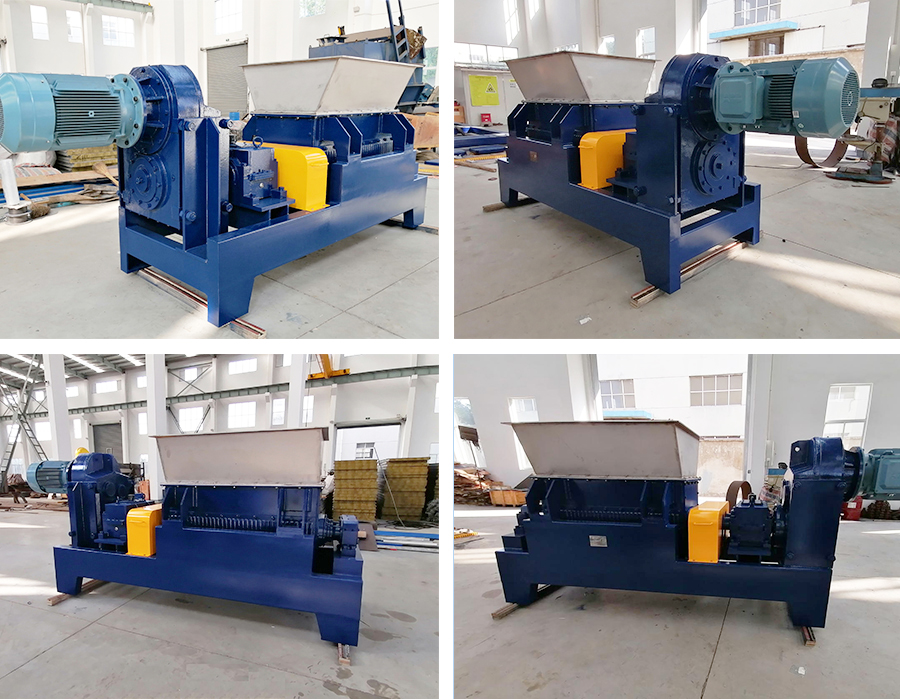

◎ Site Photos
