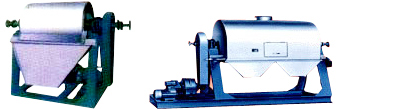

Crystallization (heated) slicer

1. Working Principle
The drum flaker realizes cooling crystallization. Molten material in the material pan contacts the cooled drum and forms a material film on the drum surface. Heat exchange between the film and drum wall cools and crystallizes the film. The crystallized film is scraped off by a doctor blade to obtain flake products.
Drum drying is a continuous operation process. A rotating drum heats and dries the material or strip material attached to its outer wall by heat transfer.
2. Equipment Features
Performance reaches the international level of overseas equipment

Side scraper fitted to prevent material buildup at drum ends
Compact structure with small footprint
Half-pipe jacketed material pan, safe and reliable
Atomization cooling for excellent cooling effect
Stepless speed regulation, adjustable drum rotation speed
High-precision drum
Wide application range, simple and flexible operation
Multiple sets of scrapers for flexible adjustment
Multi-functional, available for both flaking and drying
3. Application Scope
1. Flaking 2. Drying

4. Equipment Specifications & Main Parameters

Model	Drum Size mm	Motor Power Kw	Hot Shaft Speed r/min	Reference Dimensions (mm)
Model	Drum Size mm	Motor Power Kw	Hot Shaft Speed r/min	L	W	H
DZ-1	600×600	2.2-3	0.3-15	2400	1480	1410
DZ-2	800×1200	3-5.5	0.3-15	3360	2000	1600
DZ-4.5	1200×1200	5.5-7.5	0.3-15	3730	2250	2050
DZ-7.5	1400×1800	5.5-11	0.3-15	4460	2460	2350
DZ-9	1600×1800	7.5-15	0.3-15	4460	2600	2550
DZ-22	2300×3000	11-18.5	0.3-15	7200	3900	2350
