Vacuum decompression concentration tank

Main Application:
It is mainly suitable for liquid concentration in pharmaceutical, food, chemical and other industrial sectors. It can also recover alcohol and perform simple reflux extraction.
Structure:
This equipment mainly consists of six components: concentration tank, primary condenser, gas-liquid separator, secondary condenser, cooler and receiving tank, all fabricated from stainless steel. The concentration tank adopts jacketed structure; the condenser is tubular type; the cooler is coil type.

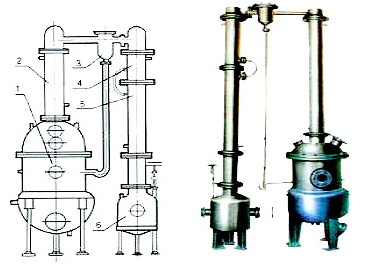

Schematic Diagram of Main Components
1. Concentration Tank 2. Primary Condenser 3. Gas-Liquid Separator 4. Secondary Condenser 5. Cooler 6. Receiving Tank

Main Technical Parameters

	50	100	200	300	500	700
Steam Pressure, MPa	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15
Vacuum Degree, mmHg	≤700	≤700	≤640	≤640	≤600	≤600
Heating Area, M²	0.4	0.59	0.8	1.1	1.45	1.8
Condensation Area, M²	1.2	1.7	2.45	3.0	3.2	3.6
Cooling Area, M²	0.25	0.35	0.4	0.6	0.7	0.85
Heating Tank Volume, L	15	45	60	76	100	125
Net Weight, kg	～350	～450	～550	～650	～800	～1000
Overall Dimension L×W×H, mm	1200×600 ×2200	1350×750 ×2200	1700×800 ×2700	1700×1000 ×3400	2100×1200 ×3400	2400×1300 ×3400
