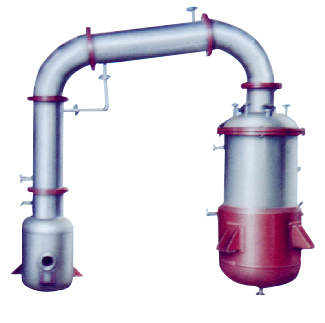

ZN vacuum decompression concentration tank

  This equipment is mainly used for thermal reflux extraction of active ingredients from Chinese herbal medicines. ZN type vacuum reduced-pressure concentration tank is a general evaporation device, widely applied in pharmaceutical, food, chemical, light industry and other industries for evaporating and concentrating aqueous, alcoholic or other organic solvent feed liquids. The machine supports thermal reflux extraction of traditional Chinese medicine, concentration, alcohol recovery, volatile oil distillation and alcohol recovery from medicinal residues, realizing multi-purpose in one tank.
Item ZN-50 ZN-100 ZN-300 ZN-200 ZN-500 ZN-700 ZN-1000 ZN-2000
Volume, L 50 100 200 300 500 700 1000 2000
Evaporation Capacity, Kg/h 20 40 50 80 100 130 160 350
Steam Pressure, MPa ＜0.15 ＜0.15 ＜0.15 ＜0.15 ＜0.15 ＜0.15 ＜0.15 ＜0.15
Vacuum Degree, kPa ＜60 ＜60 ＜60 ＜60 ＜60 ＜60 ＜60 ＜60
Heating Area, m2 ＜0.60 ＜0.80 ＜1.00 ＜1.40 ＜1.80 ＜3.00 ＜4.50 ＜6.50
Condensation Area, m2 1.2 1.7 2.4 3.2 3.5 3.6 4.5 14
Cooling Area, m2 0.25 0.35 0.45 0.6 0.7 0.85 1.2 3
Receiving Tank Volume, L 15 45 50 125 125 125 125 185
Net Weight, kg ~350 ~450 ~550 ~850 ~1200 ~1500 ~2000 ~3000
Shuoyun Petrochemical's production qualifications: Special Equipment Manufacturing License, Special Equipment Design License, Radiation Safety License...
