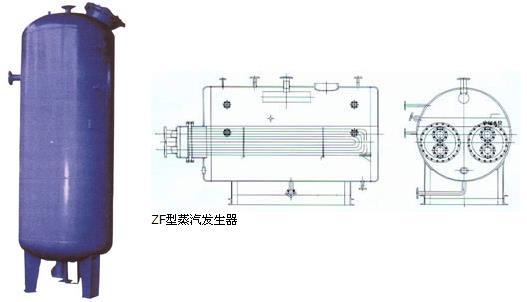

ZFQ ZF steam generator
Our factory specializes in manufacturing ZF-type steam generators matched with organic heat carrier heating furnaces. The equipment can not only supply high-temperature medium for users, but also produce required steam. It is especially suitable for flocking, strip spraying and other industries in textile sector, meeting production and domestic demands and expanding application scope. We have 0.1~1 ton steam generators in stock and can manufacture steam generators of 0.1~1 ton capacity.
I. Vertical High-efficiency & Energy-saving Steam Generator
|
Capacity (t/h) |
Diameter (DN) |
Height (m) |
Coil Weight (Kg) |
Heat Exchange Area (㎡) |
Total Weight (Kg) |
| 0.1 | 800 | 1250 | 165 | 5 | 495 |
| 0.2 | 1200 | 1400 | 380 | 11.6 | 1060 |
| 0.1 | 1200 | 1800 | 516 | 17.5 | 1300 |
| 0.5 | 1200 | 2560 | 639 | 25 | 1805 |
| 1.0 | 1600 | 3200 | 1070 | 40 | 2974 |
| 1.5 | 1600 | 3200 | 1361 | 52 | 3265 |
| 2.0 | 1800 | 3600 | 1851 | 60 | 4012 |
II. Horizontal High-efficiency & Energy-saving Steam Generator
|
Capacity (t/h) |
Diameter (DN) |
Height (m) |
Coil Weight (Kg) |
Heat Exchange Area (㎡) |
Total Weight (Kg) |
| 2 | 1200 | 3500 | 683 | 40 | 3100 |
| 2.5 | 1600 | 3600 | 1230 | 60 | 4105 |
| 3 | 1800 | 3500 | 3220 | 80 | 5112 |
