Jiangsu Shuoyun Petrochemical Equipment Co., Ltd.

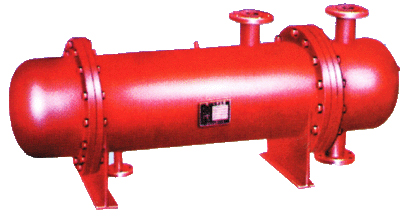

The steam-water heat exchangers manufactured by our factory are classified by material into three types: carbon steel shell and tube exchanger, stainless steel shell and tube exchanger, and carbon steel-stainless steel hybrid shell and tube exchanger. By type, they include fixed tube sheet, floating head and U-tube heat exchangers. By structure, they are single-pass, double-pass and multi-pass. Heat transfer area ranges from 0.5 to 1500 m², and custom fabrication is available according to user requirements.


Steam-water heat exchanger mainly refers to heat transfer equipment using steam and water as heat exchange media. It is also known as steam-water heat exchanger or steam-water heat transfer equipment. Besides steam-water heat exchangers, there are also water-water heat exchangers and oil-steam heat exchangers. They have a wide range of applications and are widely used in production. They are continuously recognized and favored by numerous customers in chemical industry and daily life scenarios.

Diameter mm Effective Length m Heat Transfer Area m² Working Temperature Working Pressure 400 1.2-2.6 3.37-8.07 164℃ 0.6MPa 500 1.6-3.0 7.9-14.9 164℃ 0.6MPa 650 1.8-3.2 14.2-25.3 164℃ 0.6MPa 800 1.8-3.2 23.0-40.8 164℃ 0.6MPa
