Products

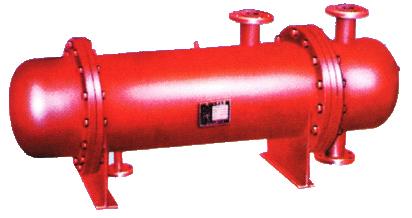

Gas-water heat exchanger
Our factory manufactures gas-water heat exchangers. By material, they are classified into carbon steel shell and tube exchangers, stainless steel shell and tube exchangers, and carbon steel-stainless steel composite shell and tube exchangers. By configuration, they include fixed tube sheet, floating head and U-tube heat exchangers. By internal structure, there are single-pass, two-pass and multi-pass types. Heat transfer area ranges from 0.5 to 500 m², and custom fabrication is available upon customer requirements.
| Diameter (mm) | Effective Length (m) | Heat Transfer Area (m²) | Working Temperature | Working Pressure |
| 400 | 1.2-2.6 | 3.37-8.07 | 164℃ | 0.6MPa |
| 500 | 1.6-3.0 | 7.9-14.9 | 164℃ | 0.6MPa |
| 650 | 1.8-3.2 | 14.2-25.3 | 164℃ | 0.6MPa |
| 800 | 1.8-3.2 | 23.0-40.8 | 164℃ | 0.6MPa |
