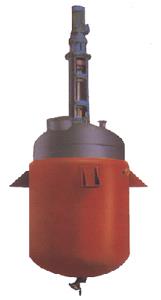

Steam heats the circulating thermal oil to heat the reaction stirring tank

Agitator tank, also known as aqueous phase tank, is widely used in coatings, pharmaceuticals, building materials, chemical industry, pigments, resins, food, scientific research and other industries. According to the process requirements of user products, the equipment can be fabricated from carbon steel, stainless steel and other materials, and can be equipped with heating and cooling devices to meet diverse process and production demands. Heating modes include jacket electric heating and coil heating. Featuring reasonable structural design, advanced technology, long service life, simple operation and convenient use, this equipment is an ideal chemical equipment with low investment, quick commissioning and high return. Main technical parameters of stainless steel reaction kettle with thermal oil circulation heating and steam heating

Capacity (L)	Inner cylinder diameter Ø (mm)	Jacket diameter Ø (mm)	Motor power (kW)	Reducer model	Agitation speed (r.p.m)
30	400	500	0.6-1.1	M2	60-80
50	500	600	0.6-1.1	M3	60-80
100	550	650	1.1-1.5	M4	60-80
150	600	700	2.2	M6	60-80
200	650	750	2.2	M6	60-80
300	800	900	2.2	M6	60-80
500	900	1000	2.2	M6	60-80
800	1100	1200	4	M8	60-80
1000	1200	1300	4	M8	60-80
1500	1300	1400	4	M8	60-80
2000	1400	1500	4	M8	60-80
2500	1400	1500	7.5	BLB7.5-4-13	90
3000	1400	1500	7.5	BLB7.5-4-13	90
3500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-23	63
5000	1600	1700	7.5	BLB7.5-4-23	63
6000	1800	1900	15	BLB15-5-13	100
8000	2000	2100	15	BLB15-5-13	100
32000	3000	3200	37	BLB450-11-45	50-100

Other special specifications can be custom-designed separately.

Thermal oil circulation heating is applicable to reaction kettles and resin equipment of 500L and above.

When ordering the above equipment, please specify the maximum working pressure, maximum working temperature and working medium.
